DWC Controls With Extended Attributes

This chapter covers BBj controls implemented as web components for the Dynamic Web Client and their extended attributes.

Overview

In creating DWC controls, BASIS has added new functionality and configuration parameters based on today's web standards and customer requests. Many of these features are available as attributes listed in the DWC-specific documentation.

Concepts Covered in This Chapter

• Component themes for controls
• Attributes
• The BBjTree's built-in search
• Input control labels

Component Themes

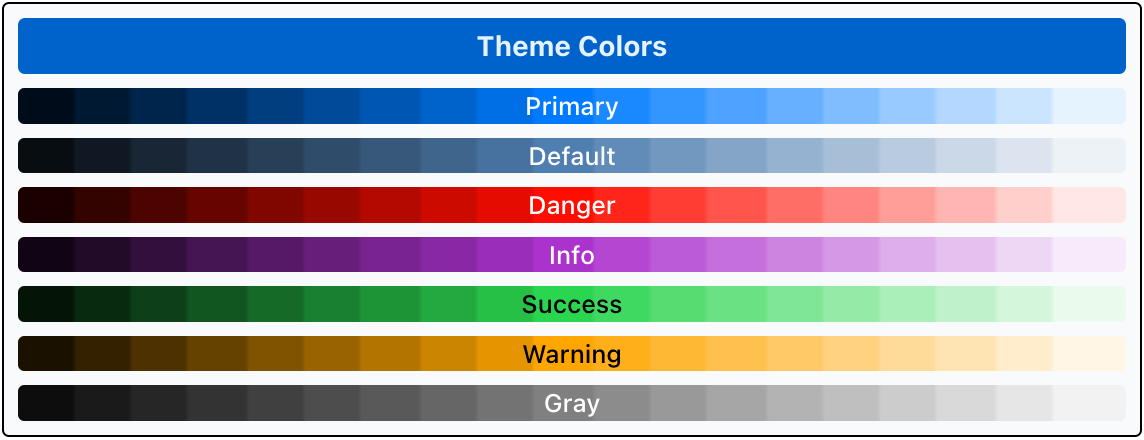

Many controls offer a "theme" attribute that can be set to one of the DWC's component themes:

Theme	Purpose	Default Color
primary	Main color, typically brand-based	Blue
default	Gray variations tinted with primary color	Light gray with blue tint
info	Information to end-user, complementary to primary	Purple
success	Denoting successful operations	Green
warning	Presenting warnings	Yellow
danger	Presenting problems	Red
gray	Desaturated grays	Gray

Color Properties

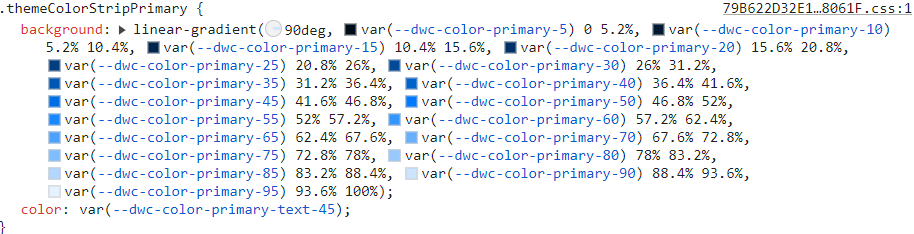

Theme colors are defined by CSS custom properties with three main properties:

• Hue - Degree on color wheel (0-360). Example: --dwc-color-primary-h: 211; (blue)
• Saturation - Percentage (0-100%). Example: --dwc-color-primary-s: 100%; (bright)
• Contrast threshold - When text should flip from white to black. Example: --dwc-color-primary-c: 50%;

Colors range from 5% to 95% lightness: --dwc-color-primary-25 (dark) to --dwc-color-primary-85 (light).

Attributes

DWC controls offer attributes providing extra functionality beyond GUI and BUI clients.

Common Attributes

• theme - Sets the control's color theme
• expanse - Shortcut for affecting font size and padding (controls overall size)

BBjTree Search Attributes

Attribute	Description
search-input	Shows edit box above tree for client-side filtering
search-case-sensitive	Makes search case-sensitive
search-nodata	Custom message when no search results
search-placeholder	Placeholder text for search box
search-term	Filter tree contents programmatically (supports regex)

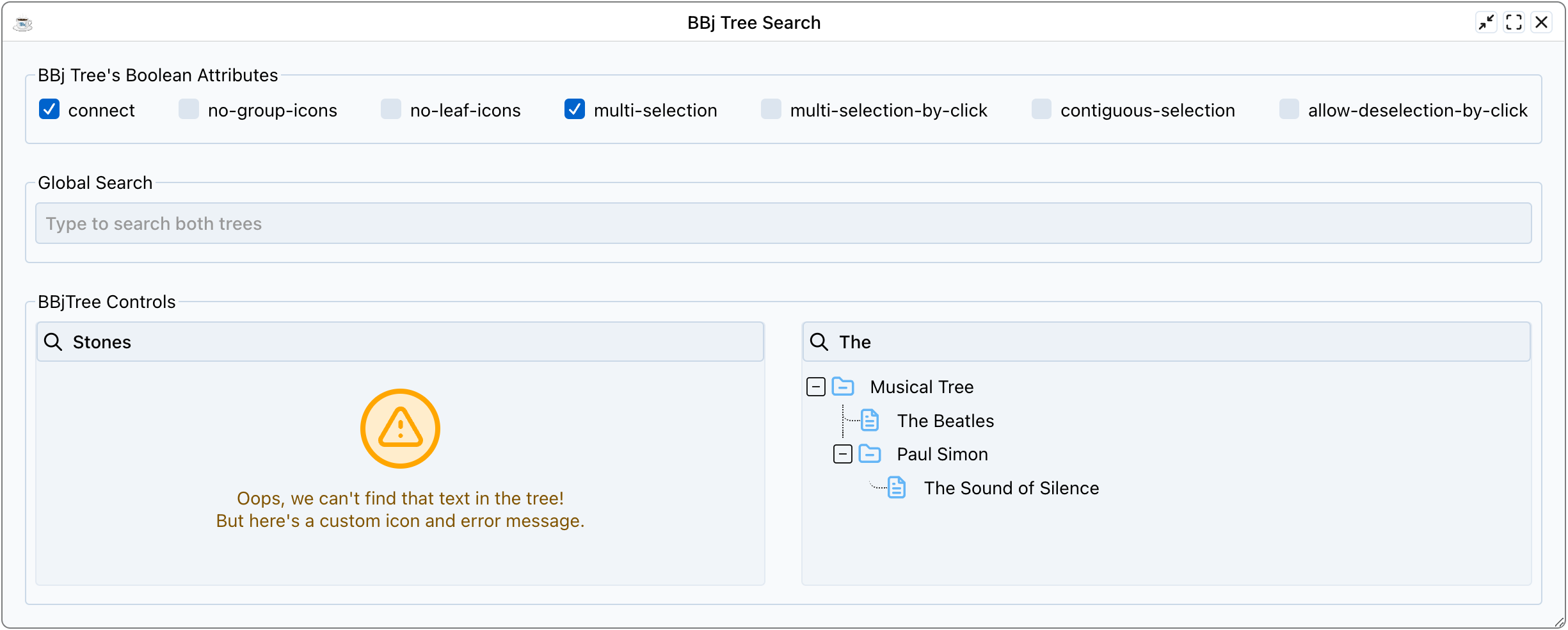

Example 1 - Setting Attributes on BBjTree

1. Run DWCTraining/04_ExtendedAttributes/TreeSearch.bbj
2. Toggle checkboxes to enable/disable named attributes
3. Search in individual trees and via global search
4. Note custom error messages via search-nodata attribute

Input Control Labels

BBj input controls offer a "label" attribute that creates and places a label automatically.

Benefits of Attribute Labels

1. Reduced developer work - No need to create, size, and place separate text controls
2. Validation integration - Labels change color to denote valid/invalid states
3. Accessibility - Narrators recognize the label as associated with the control
4. Responsive layouts - Easier to design since labels are part of the control

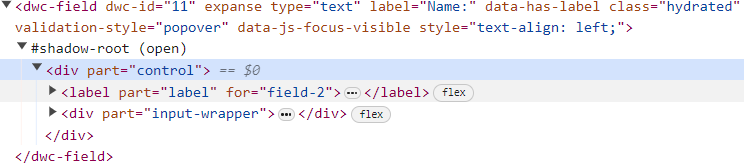

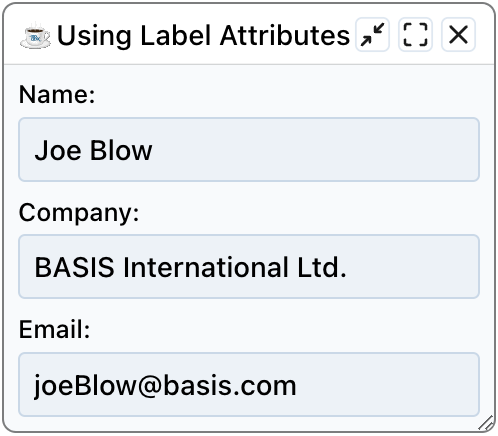

With attribute label:

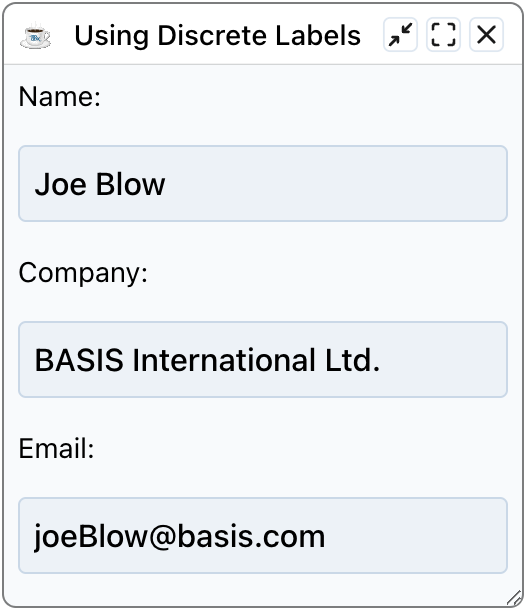

Without attribute label (separate BBjStaticText):

Example 2 - Comparing Label Types

1. Run DWCTraining/04_ExtendedAttributes/LabelAttributes.bbj
2. Choose "yes" for attribute labels, then run again and choose "no"
3. Resize the window - notice how attribute labels stay with their inputs

Why Attribute Labels Work Better

With attribute labels: Labels are part of the control in the DOM, staying attached during resize.

With BBjStaticText: Labels are separate elements that can separate from inputs when resizing.
