Control Validation

This chapter covers implementing control validation in DWC applications.

Overview​

The DWC provides built-in validation capabilities that allow you to validate user input with visual feedback.

Validation Attributes​

Controls support validation attributes that provide automatic validation:

AttributeDescription
requiredField must have a value
patternRegex pattern the value must match
min / maxMinimum/maximum values for numbers
minlength / maxlengthCharacter length constraints

Setting Validation​

Required Field​

editBox!.setAttribute("required", "true")
editBox!.setAttribute("label", "Email Address")

Pattern Validation​

rem Email pattern
editBox!.setAttribute("pattern", "^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\.[a-zA-Z]{2,}$")
editBox!.setAttribute("invalid-message", "Please enter a valid email address")

Visual Feedback​

When validation fails:

  • The control's border changes color (typically red for danger theme)
  • The label changes color to match
  • An invalid message can be displayed

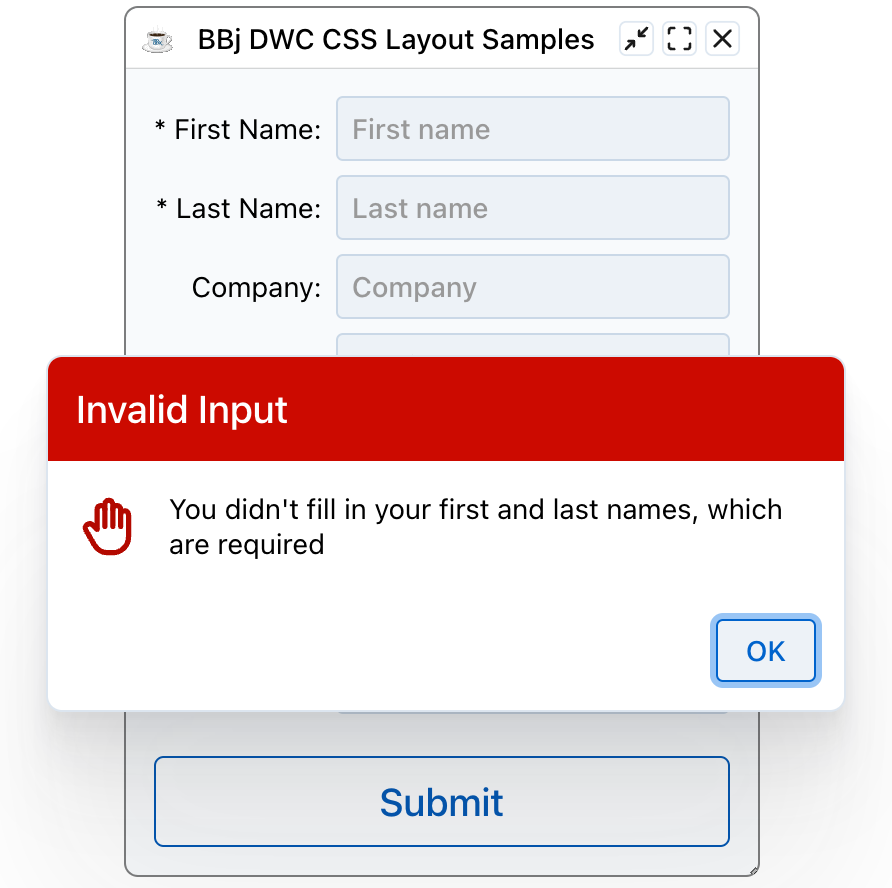

Validation Visual Feedback

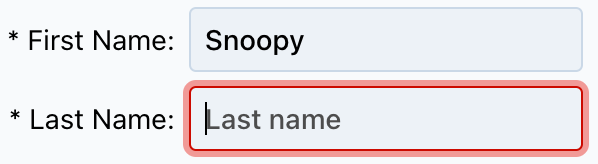

Validation States Example

Validation States​

Controls have three validation states:

  1. Valid - Input meets all requirements
  2. Invalid - Input fails validation
  3. Pristine - Control hasn't been interacted with yet

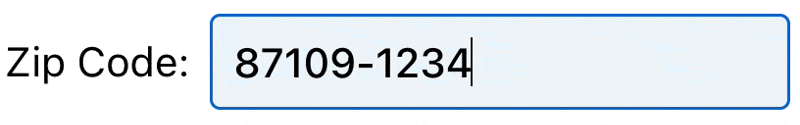

Validation Demo

Checking Validation in Code​

rem Check if a control is valid
if (editBox!.isValid()) then
    rem Process the form
else
    rem Show error message
endif

Custom Validation​

For complex validation logic:

rem Set custom validity
editBox!.setCustomValidity("This username is already taken")

rem Clear custom validity
editBox!.setCustomValidity("")

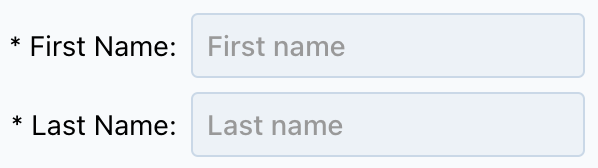

Custom Validation Example

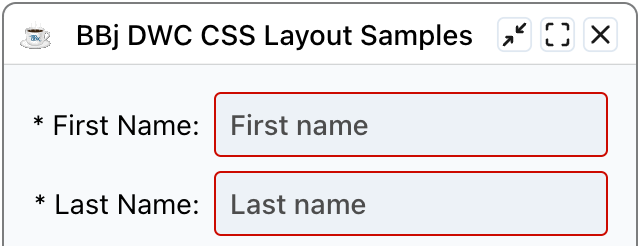

Validation Patterns

Example - Email Validation​

rem Create email input with validation
email! = wnd!.addEditBox("")
email!.setAttribute("label", "Email")
email!.setAttribute("required", "true")
email!.setAttribute("type", "email")
email!.setAttribute("invalid-message", "Please enter a valid email")

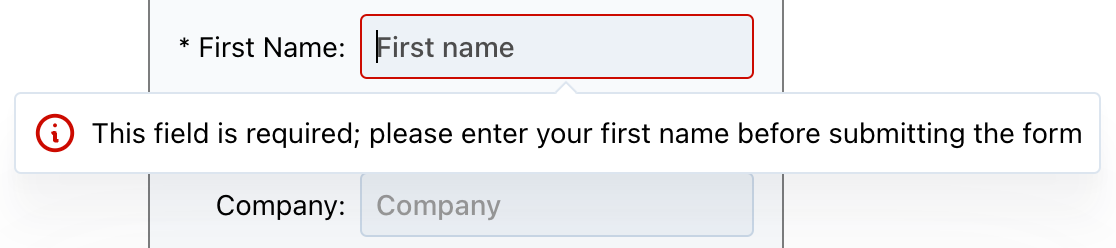

Email Validation Example

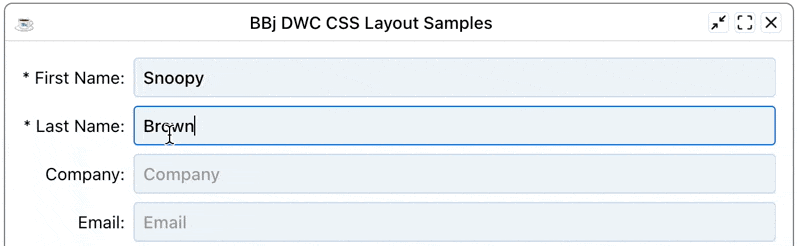

Validation Demo 2

Exercise: Adding Validation to an Email Field​

Run DWCTraining/07_ControlValidation/ examples to see validation in action.

Validation Exercise

More Validation Examples

Testing Regular Expressions​

Use Regex101 to test your validation patterns:

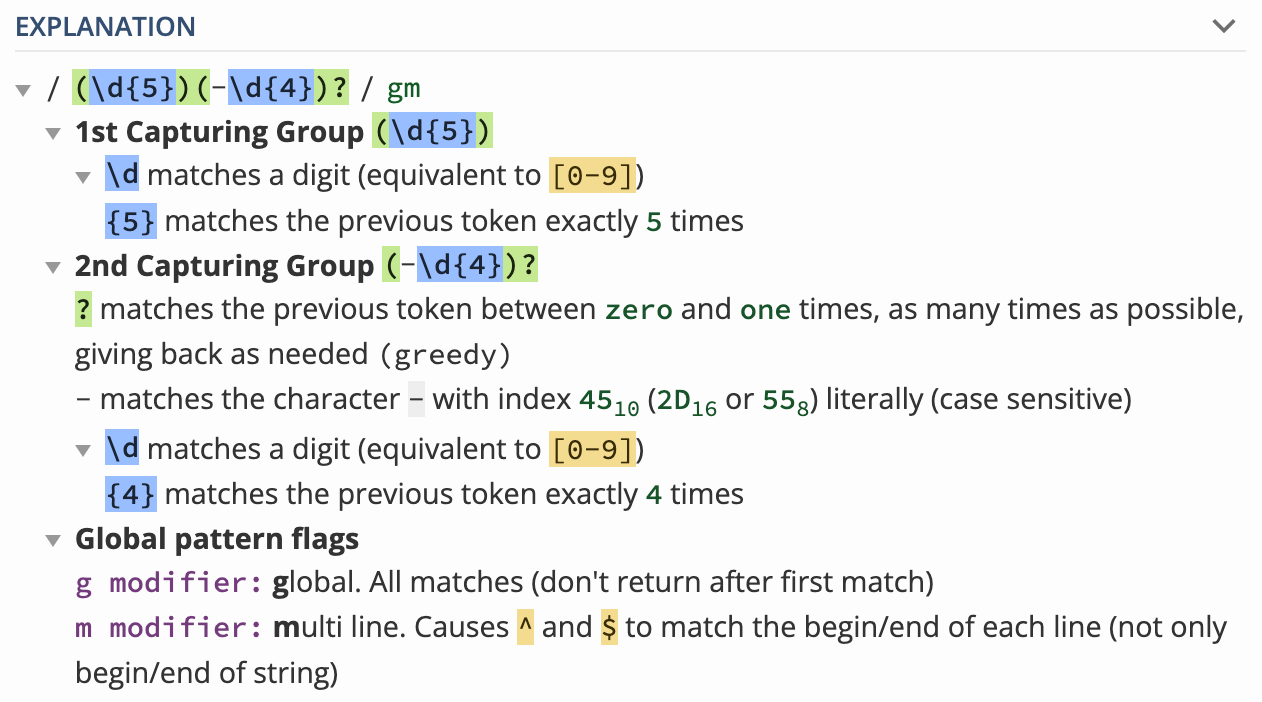

Regex101 for testing patterns

Validation Complete Example

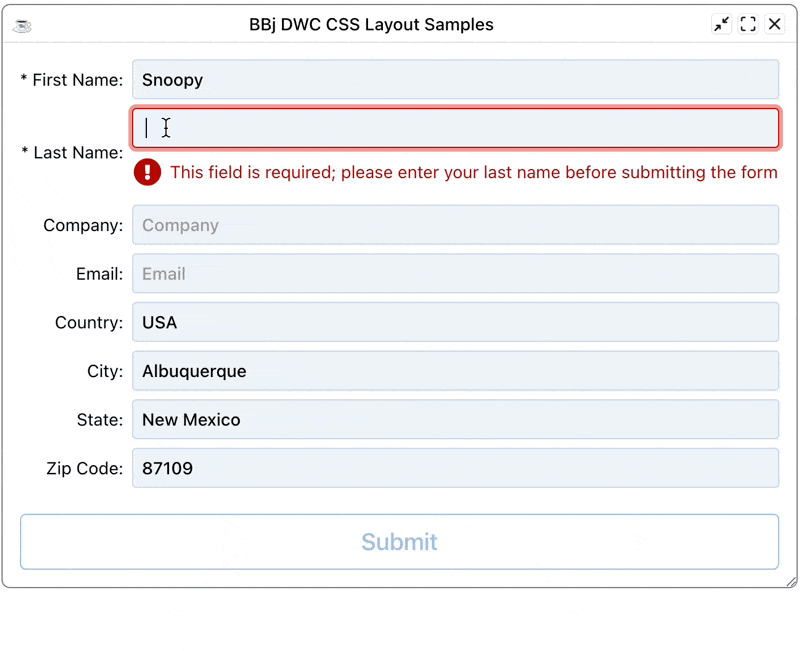

Validation Demo 3

Final Validation Example

Best Practices​

  1. Always provide helpful error messages - Tell users what's wrong and how to fix it
  2. Validate on blur - Check fields when the user leaves them
  3. Use appropriate input types - Email, number, etc. provide built-in validation
  4. Combine client and server validation - Never trust client-side validation alone
