Introduction to the Browser's Developer Tools

Overview​

This section starts with an introduction to the browser's Developer Tools, a powerful suite of tools aimed at web developers that are provided by every modern web browser.

Section Files​

We'll be using the DWC1.bbj file during this section of the course.

Concepts Covered in This Section​

  • Accessing the browser's Developer Tools
  • A brief tour of the Developer Tools and their major features
  • Modifying the text and style of a BBjControl in the Developer Tools

Developer Tools Features​

The browser's Developer Tools are designed to help web developers with any imaginable web-related task, and since we're now running BBj graphical applications in a web browser, we officially qualify as web developers.

Even if you've never used the browser's Developer Tools before, after these exercises you'll be able to inspect and edit a BUI or DWC app's Document Object Model (DOM) as well as the DIVs that comprise every BBjControl.

The tools help us with:

  • Editing DOM elements - Access BBjControls directly in the Elements/Inspector tab by modifying HTML, text, class names, attributes, inline styles, etc.
  • Console access - View messages & errors, debug programs, and execute JavaScript
  • CSS styles viewing - See all CSS styles associated with an element from all sources, and which styles were chosen vs. ignored
  • Source viewing - Access cookies, local/session storage, images, scripts, and stylesheets with pretty-print for minified sources
  • Performance profiling - Profile network and memory performance, including bandwidth throttling to simulate slower networks
  • Device simulation - Simulate responsive and mobile devices for testing CSS layouts

Example 1 - Opening the Browser's Developer Tools​

Step 1: Run the Program​

Load the DWC1.bbj program from the first chapter and run it in the DWC. If the program runs inside a browser window in Eclipse, reconfigure Eclipse to use your default system browser.

Step 2: Open Developer Tools​

Open the browser's Developer Tools using one of these methods:

MethodInstructions
Context MenuRight-click on the page and choose 'Inspect' (Chrome, Edge, Firefox) or 'Inspect Element' (Safari)
Menu BarChrome: View > Developer > Developer Tools
Edge: Tools > Developer > Developer Tools
Firefox: Tools > Browser Tools > Web Developer Tools
Safari: Develop > Show Web Inspector
KeyboardWindows: F12 or Ctrl + Shift + I
macOS: ⌘ + ⌥ + I
tip

The context menu option has the added benefit of selecting the Elements tab and highlighting the code for the element you clicked.

Step 3: Configure Developer Tools​

The Developer Tools offer configuration options including:

  • Dock location - Display horizontally below, vertically left/right, or in a separate window
  • Light/dark mode - Choose your preferred theme
  • Color format - Set default color format

Step 4: Key Sections to Know​

TabPurpose
ElementsDisplays the DOM (underlying HTML) that makes up the DWC app
ConsoleDisplays output, messages, warnings, errors, and allows JavaScript execution
ApplicationShows cookies, local/session storage, images, scripts, stylesheets
StylesShows all styles for the selected element; Computed styles shows only rules in effect

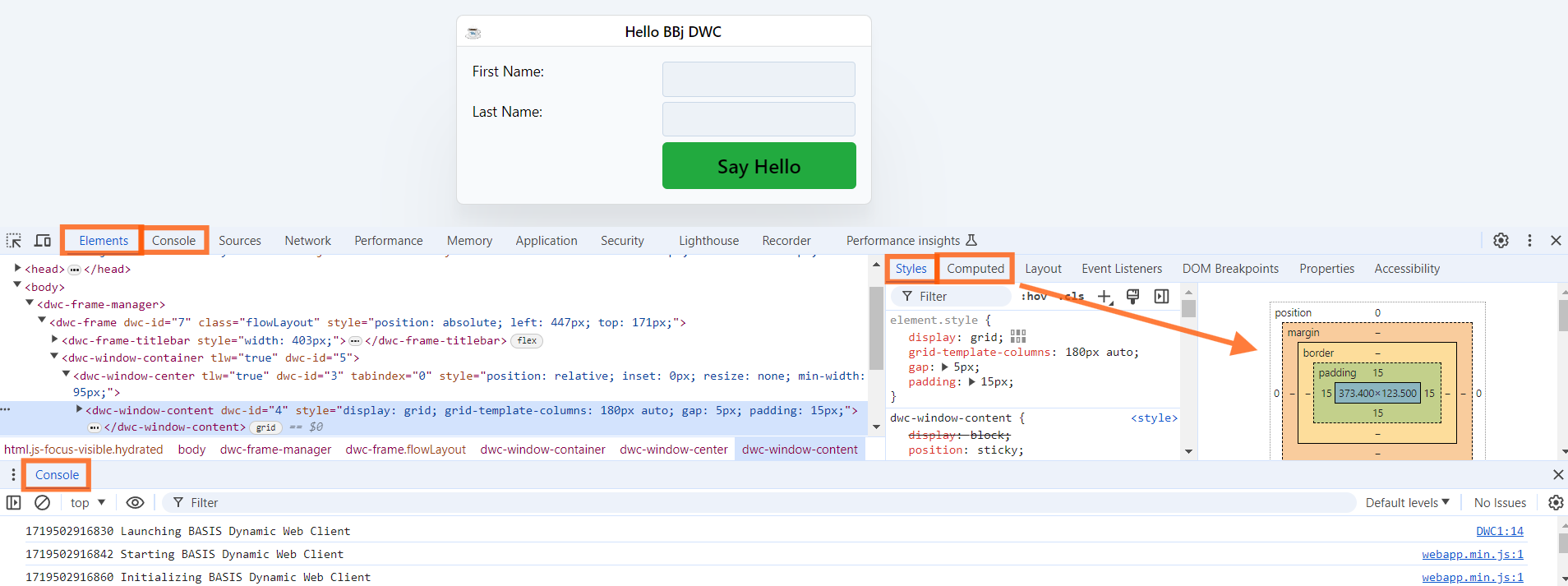

Developer Tools Console View

Example 2 - Modifying a DWC App in the Developer Tools​

Step 1: Find and Modify the Title Bar​

Find the element associated with the BBj app's title bar text:

  1. Click the element selection tool at the top left of Developer Tools, then click the title bar
  2. Search for dwc-frame-titlebar-text using Ctrl+F (Windows) or ⌘+F (macOS)
  3. Expand disclosure triangles in the Elements tab until you find the DIV

Change the text by either:

  • Right-clicking and choosing "Edit Text"
  • Double-clicking the text to enter edit mode

Step 2: Change Title Color​

  1. Select the correct DOM element
  2. Go to the Styles tab
  3. Find the dwc-frame-titlebar-text class definition
  4. Click the closing curly brace } and type color: green

Title bar text without color

After adding the color style:

Title bar text with color

note

Changes made in Developer Tools are temporary and will disappear on page refresh. This is perfect for quick testing before making permanent changes in your code.

Step 3: Enable/Disable Styles​

Mouse over styles in the Styles tab to see checkboxes. Uncheck to temporarily disable a style.

Step 4: Use CSS Custom Properties​

Change the color value to a DWC CSS custom property:

color: var(--dwc-color-danger)

After typing var(, you'll see code completion with all DWC CSS variables including color swatches.

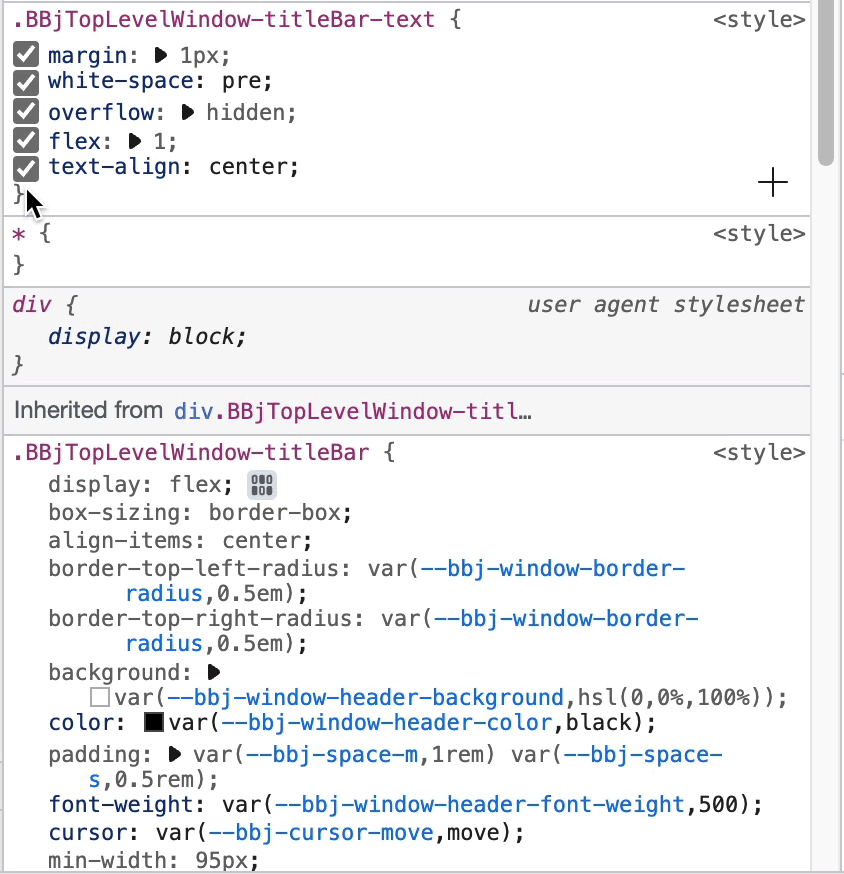

DWC CSS Variable Code Completion

Example 3 - Setting CSS Styles on Controls​

Step 1: Set Color in Code​

Set the text color to green on a label:

st!.setStyle("color", "green")

Step 2: Use CSS Custom Properties​

Use the DWC's CSS custom property for the "info" theme (purple):

st!.setStyle("color", "var(--dwc-color-info)")

Going the Extra Mile​

Change Background Color​

Set the background to a light yellow using the warning theme at 90% lightness:

st!.setStyle("background", "var(--dwc-color-warning-90)")

The -90 ending indicates 90% lightness (0% = black, 100% = white).

Button Background Considerations​

When changing a BBjButton's background, use background not background-color:

btn!.setAttribute("expanse","xl")
REM btn!.setAttribute("theme","success")
btn!.setStyle("color", "var(--dwc-color-info)")
btn!.setStyle("background", "var(--dwc-color-warning-90)")

If you set the background-color property in this way, the light yellow shows only in the corners of the button:

A Say Hello button whose face stays blue-gray after setting background-color, with a faint yellow tint visible only at the rounded corners.

Change the code to set background instead, and the whole button takes the color you expect:

A Say Hello button with a light yellow face after setting the background shorthand property.

Why use background instead of background-color?

The background property is a CSS shorthand that combines eight constituent properties (attachment, clipping, color, image, origin, position, repeatability, and size). Using background-color only affects the color, which may not override other background properties.

Complex Background Example​

logo$ = "'https://basis.cloud/wp-content/uploads/2023/07/logo_basis_v2.svg'"
texture$ = "'https://public.basis.cloud/Training/images/lightSwirls.jpg'"
value$ = "url(" + logo$ + ") left 1em bottom 0.5em/auto 25% no-repeat, url(" + texture$ + ") left top/150px repeat"
wnd!.setStyle("background", value$)

This sets two backgrounds: the BASIS logo on the bottom left and a swirly pattern covering the entire window.

The Hello BBj DWC window with a swirl pattern across the whole window and the BASIS logo at the bottom left.

More Information About the Browser's Developer Tools​

Style Specificity​

When selecting an element, the Styles section shows:

  1. element.style - Inline styles affecting only that element (highest specificity)
  2. Class styles - Styles applying to all elements with that class
  3. Universal styles (*) - Styles applying to all elements

Crossed-out declarations indicate they've been overridden by higher-specificity rules.

See the Mozilla documentation on specificity for more information.

CSS Grid Visualization​

Clicking on a panel element in the Elements tab overlays a grid showing:

  • Green - Padding
  • Purple - CSS Grid gaps
  • Blue - CSS Grid cells containing BBj controls

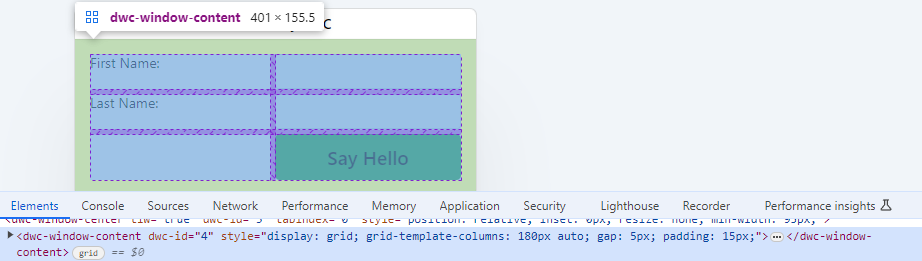

DWC Panel Grid

Click the small grid tag next to elements with CSS Grid to see sizing information. The Layout tab provides additional grid overlay controls.

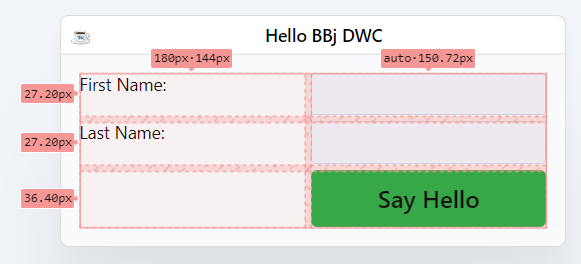

Grid Size Information
